Radio Shuttle Racking is a high-density storage system designed to maximize warehouse space utilization while improving pallet handling efficiency. By combining shuttle carts, guide rails, and forklift operations, this system enables fast and semi-automated pallet movement inside storage lanes, reducing manual handling and increasing operational productivity.
Suitable for cold storage, food & beverage, logistics centers, manufacturing facilities, and distribution warehouses, radio shuttle racking systems are widely used in environments requiring high storage density and fast inventory turnover.
Radio shuttle racking is an advanced pallet storage solution that uses a remote-controlled shuttle cart to automatically move pallets within rack channels. Forklifts place the shuttle into the designated lane, and the shuttle then transports pallets to the correct storage position.
Compared with traditional drive-in racking systems, radio shuttle racking improves warehouse safety, reduces forklift travel inside rack lanes, and allows for higher storage density with more efficient pallet handling.
The system supports both FIFO (First In First Out) and LIFO (Last In First Out) inventory management depending on warehouse layout and operational requirements.
🔹 High Storage Density
Radio shuttle systems significantly increase storage capacity by reducing the number of aisles required. Deep lane storage allows warehouses to maximize cubic storage space.
🔹 Improved Operational Efficiency
The shuttle automatically moves pallets within channels, minimizing forklift travel time and accelerating loading and unloading operations.
🔹 Enhanced Warehouse Safety
Because forklifts do not enter rack lanes during operation, the risk of rack collision and product damage is greatly reduced.
🔹 Flexible Inventory Management
The system supports FIFO and LIFO operations, making it suitable for various inventory turnover strategies.
🔹 Suitable for Cold Storage Applications
Radio shuttle racking performs exceptionally well in cold rooms and freezer warehouses where minimizing forklift operation time improves working conditions and energy efficiency.
🔹 Reduced Labor Costs
Semi-automated pallet handling lowers labor intensity and improves overall warehouse productivity.
Shuttle Cart
The shuttle cart is the core component of the system. Powered by rechargeable batteries, it automatically transports pallets along rack rails.
Racking Structure
The heavy-duty rack structure supports deep lane pallet storage and provides guide rails for shuttle movement.
Remote Control System
Operators control the shuttle using a wireless remote controller or warehouse management integration system.
Guide Rails
Guide rails ensure stable shuttle movement and accurate pallet positioning.
Forklift Equipment
Forklifts place and retrieve shuttle carts at designated rack lanes.
Designed for moderate storage density and faster SKU access.
Provides maximum storage density for warehouses storing large quantities of similar products.
Pallets are loaded from one side and unloaded from the opposite side, ideal for products with expiration dates.
Pallets are loaded and unloaded from the same aisle, suitable for high-volume bulk storage.
| Feature | Radio Shuttle Racking | Drive-In Racking | Selective Pallet Racking |
|---|---|---|---|
| Storage Density | High | High | Medium |
| Forklift Lane Entry | Not Required | Required | Not Required |
| Operational Efficiency | High | Medium | Medium |
| Safety | High | Medium | High |
| Inventory Rotation | FIFO/LIFO | LIFO Mainly | FIFO |
| Labor Requirement | Lower | Higher | Medium |

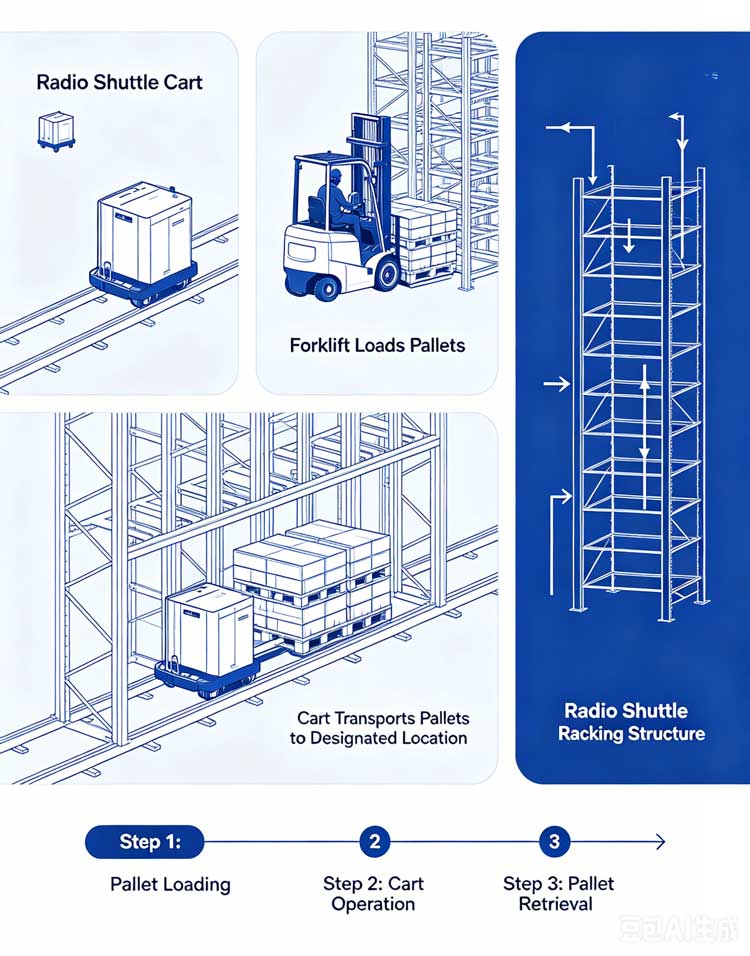

1. Forklift places the shuttle cart into the designated storage lane.
2. Pallets are loaded onto the shuttle.
3. The shuttle automatically transports pallets deep into the rack channel.
4. During retrieval, the shuttle brings pallets back to the aisle position.
5. Operators manage shuttle movement through remote control or system integration.
This semi-automated process significantly improves warehouse throughput and storage efficiency.
Radio shuttle racking systems are widely used across various industries:
* Food and beverage warehouses
* Cold storage facilities
* Pharmaceutical distribution centers
* Retail distribution hubs
* Manufacturing warehouses
* Logistics and e-commerce fulfillment centers
* Chemical and industrial storage
🔹 Maximize Warehouse Space
Radio shuttle systems utilize warehouse depth more efficiently, helping businesses increase pallet capacity without expanding facility size.
🔹 Increase Throughput
Automated pallet transport reduces loading and unloading times, supporting high-volume warehouse operations.
🔹 Reduce Equipment Damage
Limiting forklift movement inside storage lanes decreases the likelihood of rack impact damage.
🔹 Adapt to Various Warehouse Environments
The system can be customized for different pallet sizes, warehouse layouts, and operating temperatures.
🔹 Improve Inventory Accuracy
Integration with warehouse management systems enables better inventory control and tracking.
We provide customized radio shuttle racking systems based on:
* Warehouse dimensions
* Pallet size and weight
* Storage capacity requirements
* Inventory turnover methods
* Forklift specifications
* Automation requirements
* Cold storage conditions
Our engineering team can design optimized layouts to maximize storage efficiency and operational performance.
Cold storage warehouses benefit significantly from radio shuttle systems because:
* Reduced forklift travel minimizes exposure to freezing environments.
* High-density storage lowers refrigeration energy costs.
* Faster pallet handling improves warehouse efficiency.
* Semi-automated operation enhances worker safety.
The system is widely used in frozen food, seafood, pharmaceutical, and temperature-controlled logistics facilities.
Food & Beverage
Supports high-density storage for perishable products with FIFO inventory management.
E-Commerce Fulfillment
Improves throughput and storage efficiency for fast-moving inventory.
Manufacturing
Provides organized raw material and finished goods storage.
Pharmaceutical Warehousing
Enables accurate inventory rotation and temperature-sensitive storage.
To ensure long-term performance, regular maintenance is recommended:
* Inspect shuttle batteries and charging systems.
* Check rail alignment and rack structure.
* Verify remote-control operation.
* Conduct regular safety inspections.
* Train operators for proper shuttle handling procedures.
Proper maintenance extends equipment lifespan and ensures safe warehouse operations.
Most standard pallets including plastic pallets, steel pallets, and wooden pallets can be used depending on system design.
Yes. It is one of the most popular solutions for freezer warehouses due to its high-density storage and reduced forklift operation.
Yes. The system can be designed for FIFO or LIFO operation based on warehouse layout.
Load capacity varies by system design, but many systems support up to 1500 kg per pallet.
Yes. Advanced systems can integrate with WMS and automation controls for intelligent warehouse operation.
